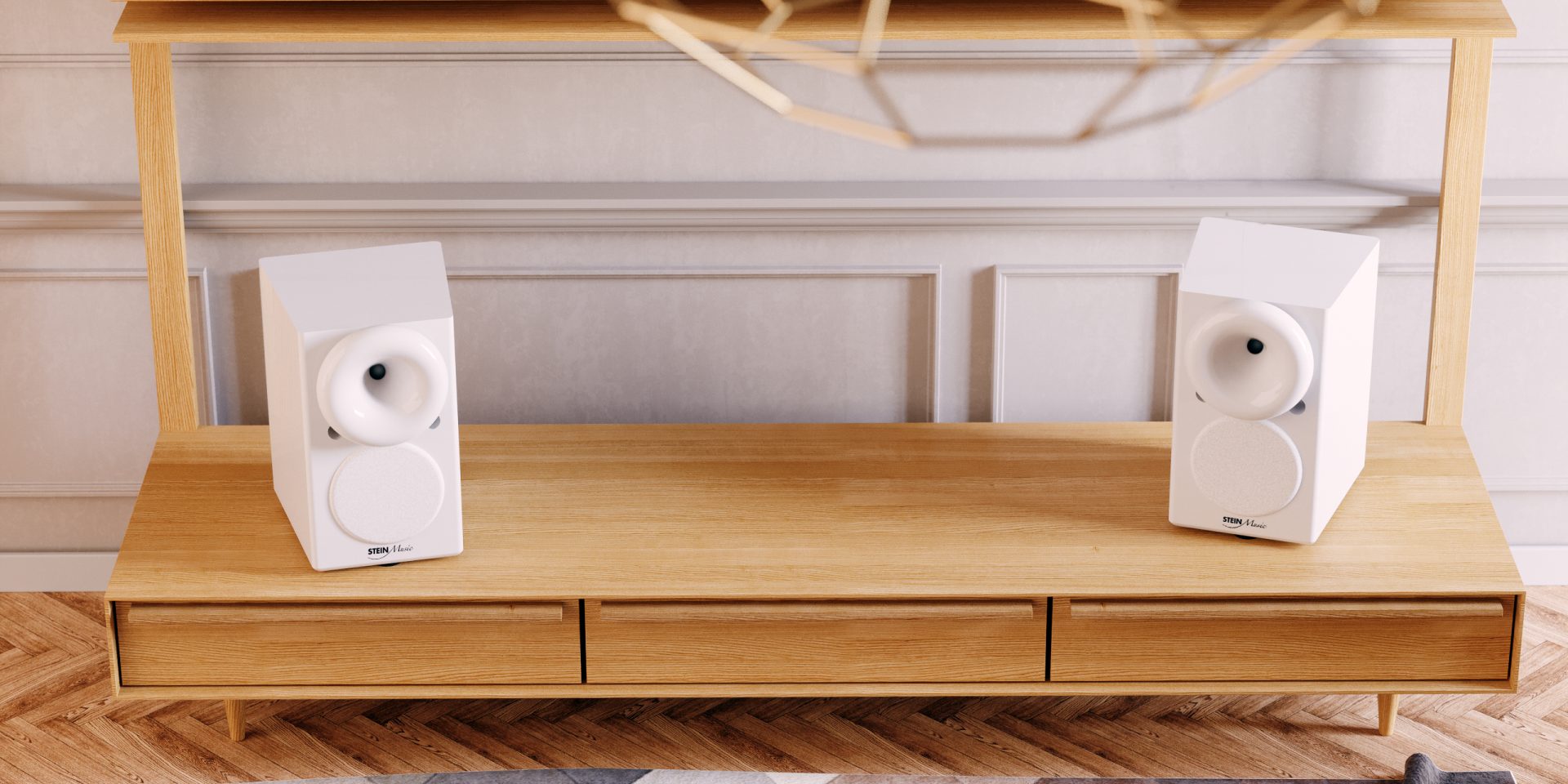

HighLine Bobby S

Hornspeaker

High End Sound – for small rooms

The basic idea was to build a coherent and relaxed sounding hornloudspeaker with an excellent impulse response.

Many years of development have been spent into the perfect matching between horns and drivers, to achieve maximum finesse of sound.

Handwerkskunst trifft Technik.

Handmade in Germany

We produce all our speakers in our own workshop. The reason is simple, to achieve the best result requires full control over the manufacturing process. Because every single component in the interaction allows the perfect sound.

Modulares System.

– ein Lautsprecher der mit ihren Gegebenheiten wächst.

The SteinMusic Bobby M and Bobby L, means the Bobby S with Bass Extensions.

The Bobby Bass Extension is specially made to perfectly expand the capabilities of the Bobby S and Bobby S Signature monitor speakers to the size and performance of a floor-standing speaker.

The Bobby Bass Extension is a passive speaker with an integrated crossover, which is designed as a perfect match to the Bobby S hornspeakers.
It has exactly the correct height to serve as a stand for the Bobby S.

There are two options to use the Bobby Bass Extensions:
Add one Bobby Bass Extension under the Bobby S, and you will get a Bobby M.
Add another Bobby Bass Extension on top of the Bobby S, and you will get a Bobby L.

Technische Daten.

Klang

SPL:  88 dB

Impedanz: 4 Ohm

Frequency Range:  45 Hz – 24800 Hz

Crossover Frequency: 2400 Hz,  6/12 dB

Leistung

SPL:  88 dB

Impedanz: 4 Ohm

Frequency Range:  45 Hz – 24800 Hz

Crossover Frequency: 2400 Hz,  6/12 dB

design

Material: Holz

Gewicht: 8,3

Abmessungen: Height: 395mm Width Front: 230mm Width Rear: 280mm Depth: 290mm

Die Highline Bobby S im Detail

Driver

FINELY SELECTED AND MODIFIED

Before designing a crossover we have carefully matched and adjusted the drivers so that we may get best results with a simple configuration here, which ensures no detail of the music will get lost in this part of the speaker. Components Each component of the crossover was chosen after extensive listening tests. The most critical capacitor for the tweeter is an oil impregnated foil capacitor. We have decided for our sonically favorite cap of the Mundorf range. These we get as raw windings and further process it in our company according to our ideas and experience to achieve a unique fine, expressive sound without colorations. The coil in the bass section is made out of individually insulated stranded wire, and as resistors we only use our favorite parts made by Beyschlag. In addition to the classical components used in a crossover, we also use our proprietary made InLine Matrix components to get rid of magnetic distortions.

Basslautsprecher im Detail
  • Belüftetes Aluminiumguss-Gehäuse für optimale Festigkeit und geringe Kompression
  • Eigenes Konusmaterial mit Naturfasern
  • Weiche, niedrig dämpfende Gummisicke für das Einschwingverhalten
  • Nichtleitender Fiberglas-Schwingspulenträger für minimale Dämpfung
  • Verlängerte Kupferhülse am Polstück für geringe Induktivität und geringen Klirrfaktor
  •  CCAW-Schwingspule für reduzierte bewegte Masse
  •  Langlebige Silberdrahtleitungen
  • Belüftetes Polstück für reduzierte Kompression
DIE HOCHTÖNER IM DETAIL
  • Kupferkappe für reduzierte Schwingspuleninduktivität und minimale Phasenverschiebung
  • Reflektionsfreie Rückkammer mit optimierter Dämpfung für mehr Dynamik
  •  Strömungsoptimiertes, belüftetes Polstück für optimale Kopplung an die Hinterkammer
  • Feinmaschige, weiche Gewebekalotte für gleichmäßigen Frequenzgang
  •  Sättigungsgeregeltes Motorsystem für geringe Verzerrungen
  • CCAW-Schwingspule für geringe bewegte Masse
  •  Langlebige Silberdrahtleitungen
  • Niedrige Resonanzfrequenz

Crossover

HANDMADE AND DEVELOPED INHOUSE

Before designing a crossover we have carefully matched and adjusted the drivers so that we may get best results with a simple configuration here, which ensures no detail of the music will get lost in this part of the speaker. Components Each component of the crossover was chosen after extensive listening tests. The most critical capacitor for the tweeter is an oil impregnated foil capacitor. We have decided for our sonically favorite cap of the Mundorf range. These we get as raw windings and further process it in our company according to our ideas and experience to achieve a unique fine, expressive sound without colorations. The coil in the bass section is made out of individually insulated stranded wire, and as resistors we only use our favorite parts made by Beyschlag. In addition to the classical components used in a crossover, we also use our proprietary made InLine Matrix components to get rid of magnetic distortions.
